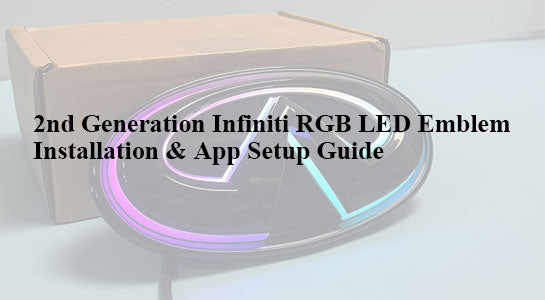

2nd Generation Infiniti RGB LED Emblem Installation & App Setup Guide
- 1. App Download
The control app, named ZENGGE, is available for both iOS and Android platforms and can be downloaded directly from your smartphone's app store.
2. First-Time Connection (Crucial Step)
To ensure a successful connection between your phone and the LED emblem:
- Power On: Confirm your new LED emblem is fully installed and receiving power (the lights must be turned on).
- Enable Bluetooth: Ensure your phone's Bluetooth is turned ON before opening the app. If Bluetooth is disabled, the app cannot detect or pair with the device.
3. Initial App Configuration & Pairing
- Turn on your phone’s Bluetooth and launch the ZENGGE app.
- On your first time opening the app, you will see the initial setup screen (as shown in the attached photo).
- View the device information and select "LED light strip settings."
- Adjust your operational parameters as shown in Picture 3.
- Save your settings:
- iPhone Users: Tap Save in the top right corner.
-
Android Users: Tap Save in the bottom right corner.
3. Return to the main menu, click on the Controller, and begin customizing your favorite lighting modes!
Once you have saved your settings, return to the main menu and tap the red circle to access the LED Emblem configuration page.
Here is the English rewrite for your LED light control modes:
| Chinese Term | English Rewrite | Common LED App Terminology |
| 1. 固定模式 | Static Mode / Solid Color Mode | Static Mode |
| 2. 内置模式 | Preset Modes / Built-in Modes | Preset Scenes / Built-in Modes |
| 3. 自定义模式 | Custom Mode | DIY Mode / Custom Mode |
| 4. 音乐模式 | Music Mode | Music Sync Mode / Sound-Activated Mode |
| 5. 多彩 | Multi-Color / RGB Mode | Multi-Color / RGB |
| 6. 取色 | Color Picker / Color Capture | Color Picker / Color Grabber |
⚙️ Understanding the ZENGGE App Control Modes
The ZENGGE app offers six main modes for full customization of your 2nd Generation Multi-Color RGB Bronco Illuminated Emblems:
1. Static Mode
This section allows you to choose your primary color display:
- First Palette: Select from a range of stable, solid LED colors (e.g., solid red, solid white, etc.). Once selected, this color will not change unless you manually adjust it.
- Rest of the Palettes: These offer dynamic styles (e.g., simple fades or shifts) that you can select and also customize the specific LED colors used within that style.
2. Preset Modes (Built-in Modes)
- This mode offers a library of various pre-designed animation sequences and effects. Simply select from the extensive list of built-in modes to immediately activate a dynamic pattern.
3. Custom Mode
This feature gives you advanced control to design your own lighting effects:
- Custom Animations: You can choose the animation sequence you want.
- Stable Color Combination: You can set a specific animation and choose a solid LED color to display.
- Important Note: Even when combined with a stable color, the custom sequence cannot stay on permanently. It will cycle through the animation and then display the chosen LED color before repeating the cycle after a few minutes.
4. Music Sync Mode
This mode enables dynamic lighting effects that are synchronized to audio, often displayed in patterns resembling a Sound Column (or visual equalizer).
The feature offers two primary ways to utilize music synchronization:
- Built-in Music Dynamic Effects: The LED emblem will sync its colors and animation patterns to music or ambient sounds. The resulting animation visually resembles a dynamic Sound Column.
- Custom Recording: You can record a short piece of music directly within the app. You can then set and save the specific color patterns for this recorded segment, creating a customized, repeatable animation sequence that mimics the recorded track.
5. Multi-Color
This mode highlights the main feature of the 2nd Generation emblem:
- Here you can access the full range of Multi-Color RGB options. This includes both dynamic Multi-Color styles (where colors change sequentially) and one stable Multi-Color blend that displays multiple hues simultaneously.
6. Color Picker
- This convenient tool allows you to "scan" or sample a color using your phone's camera. You can point the camera at any object or color you like, and the app will instantly match and set the emblem's LED color to that sampled hue.
🎥 Tutorial and Guidance
To learn exactly how to set up the Custom Mode, please refer to our tutorial video:
This video uses the same control app (ZENGGE) as your RGB Bronco Illuminated Emblems, so you can follow the instructions exactly as a direct reference.
🤝 Technical Support
If you still have any questions or require further assistance with setting the Custom Mode, please feel free to contact our technical support team:
- WhatsApp Support: +1 (281) 425-5242
For assistance, please contact us via WhatsApp and include any relevant photos or videos of the issue.
