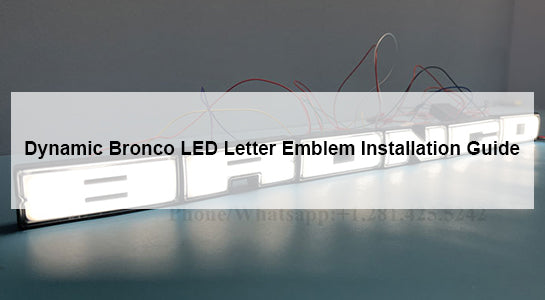

Dynamic Bronco LED Letter Emblem Installation Guide

Attached are the instructions on how to connect the wiring and install the emblem onto your grille. We highly recommend reviewing this guide before starting the installation to help save you time and ensure a smooth setup.

How to Install The Bronco Light Up Grille Letters (2021-Present)

Package Contents: 3 LED letters and 1 black controller box.

When you receive your Bronco LED Emblem, you will find three separate packs of letters. Please note that the letters are organized in pairs: B & R, O & N, and C & O.

Important: The letters are pre-arranged in the correct sequence. Do not swap or exchange the "O" letters, as they are programmed specifically for their position. If they are installed in the wrong order, the LED animation will not display correctly. Simply follow the "BRONCO" spelling order, then connect the wires color-to-color.

Step 1: Install the Letters We highly recommend pasting the BRONCO letters onto your vehicle before connecting the wiring. The small pins on the individual wires are much easier to feed through the vehicle’s body panels than the larger white plug.

Step 2: Wire the Left Plug (Color-Matched) Take a look at the attached photo for reference. The left plug uses colorful wires. Insert the individual pins into this plug by matching the wire colors exactly (e.g., connect white-to-white, black-to-black, etc.). There are 6 wires total to plug in here.

Step 3: Wire the Right Plug (All Red Wires) The right plug connects all of the red wires.

Please double-check your connections against the reference image before finishing up!
