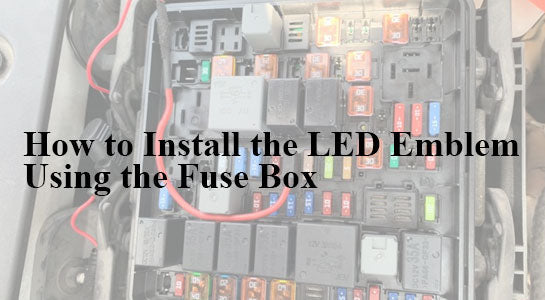

How to Install the LED Emblem Using the Fuse Box

Step 1: Find the Right Place to Connect the Red Wire

Locate the 10A Fuse: Start by finding a suitable voltage plug. Then, identify the 10A fuse in the fuse box. There are three 10A fuses, but we cannot specify which one is correct. You will need to test each one individually.

Testing the Fuses: Look for a fuse that receives power when the car is turned on and loses power when turned off. Remove that fuse.

Connect the Tap: Install the tap with the LED emblem onto the removed fuse, then reinsert the fuse back into the fuse box. This way, both the LED emblem and the fuse will receive power when the car is on or off.

There are pins at the end of our red wire. If you connect it to the tap, you can cut off our pin and use the wire to tap directly.

Like the following photos: The red wire is for the LED emblem (2017 ATS)

Step 1: Find the Right Place to Connect the Black Wire

To connect the black wire for grounding:

Locate a Suitable Grounding Point: Look for a metal component or bolt in the vehicle that is securely attached to the chassis. Common grounding points include:

• Existing ground bolts near the fuse box
• Bolts on the vehicle’s frame or body

Prepare the Connection: Clean the area where you will connect to ensure good contact.

Attach the Black Wire: Use a ring terminal or similar connector to attach the black wire to the chosen grounding point. Make sure it is secure and tight.

Test the Connection: Once the black wire is connected, you can test the LED emblem to ensure it functions correctly.
